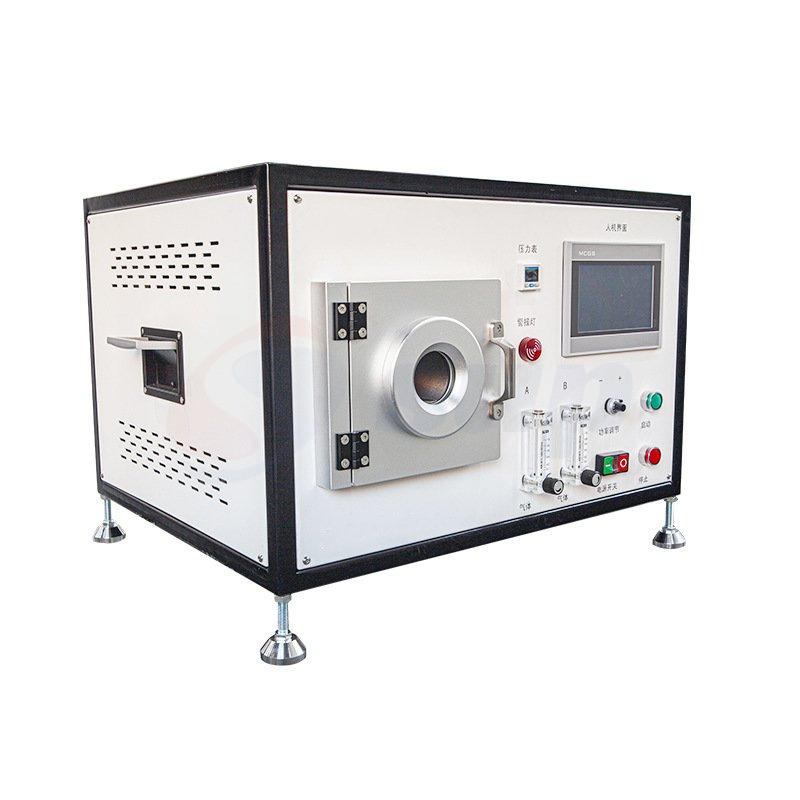

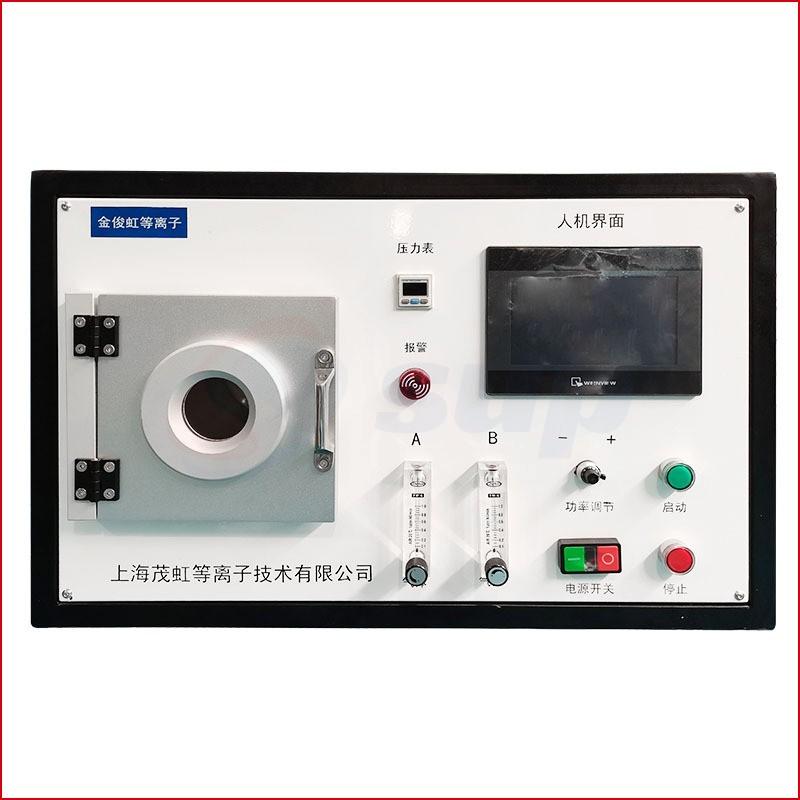

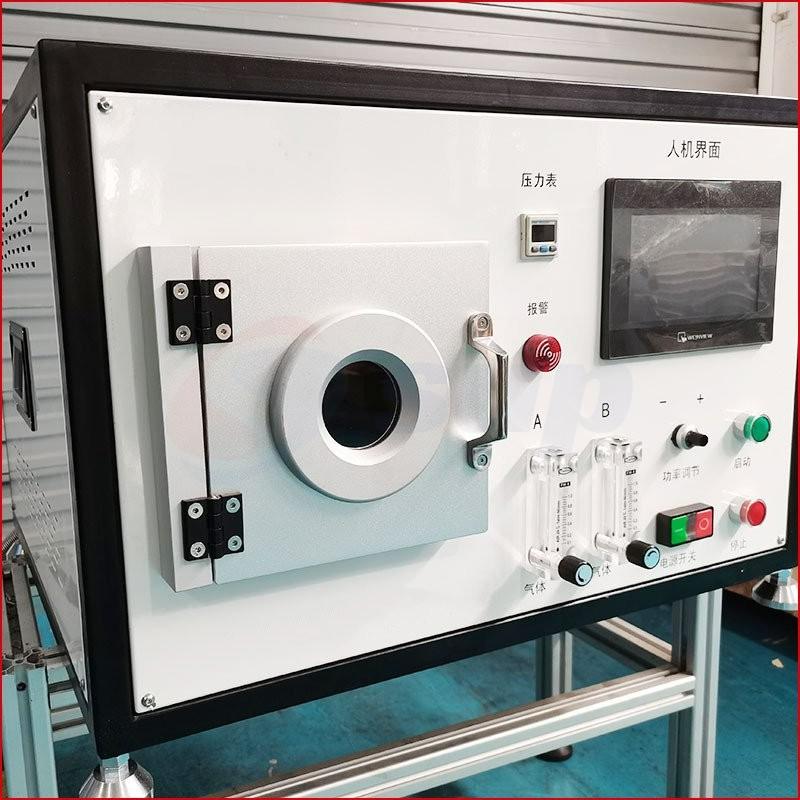

Desktop Low pressure plasma cleaner C-DW100

Desktop Low pressure plasma cleaner C-DW100

1. The output plasma energy is 40% higher than that of similar domestic products. Under the same processing effect, it can make the assembly line run faster.

2. Wide processing range. This equipment is suitable for surface modification and cleaning treatment of polymer materials such as PVC, PE, PP, FEP, cross-linked polyethylene, PTFE, UV and various metals, greatly improving the surface adhesion of materials.

### Equipment Advantages

1. The output plasma energy is 40% higher than that of similar domestic products. Under the same processing effect, it can make the assembly line run faster.

2. Wide processing range. This equipment is suitable for surface modification and cleaning treatment of polymer materials such as PVC, PE, PP, FEP, cross-linked polyethylene, PTFE, UV and various metals, greatly improving the surface adhesion of materials.

3. It has an external signal input interface to realize barrier-free synchronous operation with other equipment.

4. Broad environmental adaptability. It can operate stably in unstable external power grids, high-temperature and high-pollution environments.

5. The average trouble-free time is as high as 10,000 hours, and the stability reaches the level of similar German products.

6. Easy to operate and install.

Model	C-DW100	Control Process	Fully automatic control and manual
Cavity Material	316 stainless steel with surface treatment	Cleaning Time	0~99999S adjustable
Cavity Size	400500500mm (customizable)	Vacuum Degree	1~30pa
Cavity Capacity	100L (customizable)	Cavity Temperature	<30℃
Overall Dimension	11007001500 (customizable)	Power Supply Voltage	AC380V
Power Frequency	40MHz/13.56MHz	Vacuum Pump	BSV60 (pumping speed 20L/S)
Power Power	0~750W	Flowmeter	Ultra-precision 2-channel electronic flowmeter
Vacuum Gauge:	High vacuum fast gauge tube measurement and real-time display	Application Scope	Suitable for offline surface modification treatment of polymer profiles such as EPDM, TPE, PVC, PE, PP, PVF2, LDPE, as well as metals, ceramics, silicon materials, and glass.
