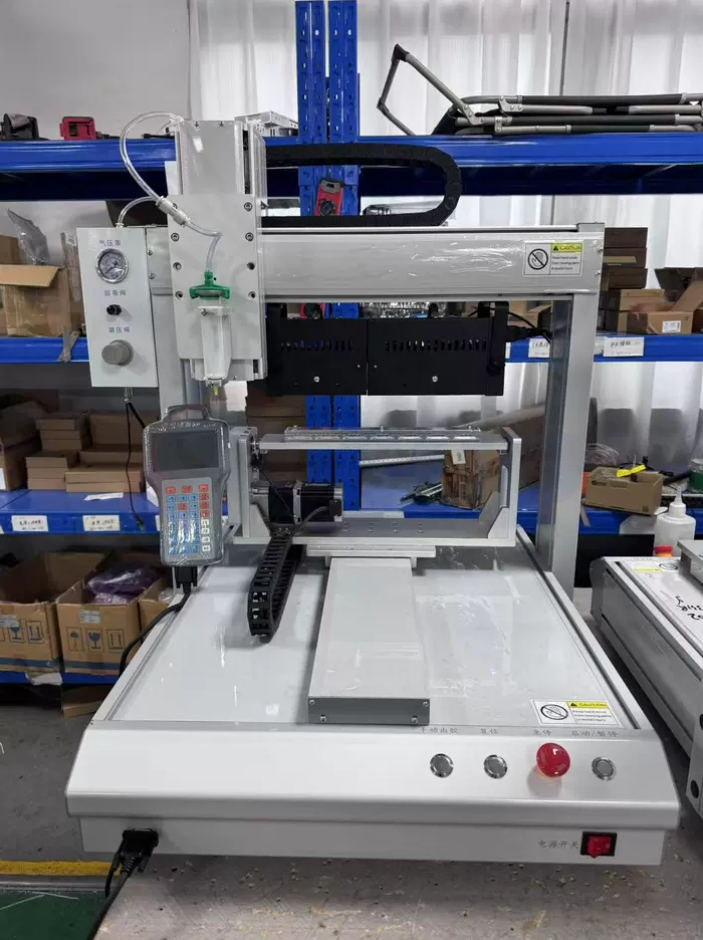

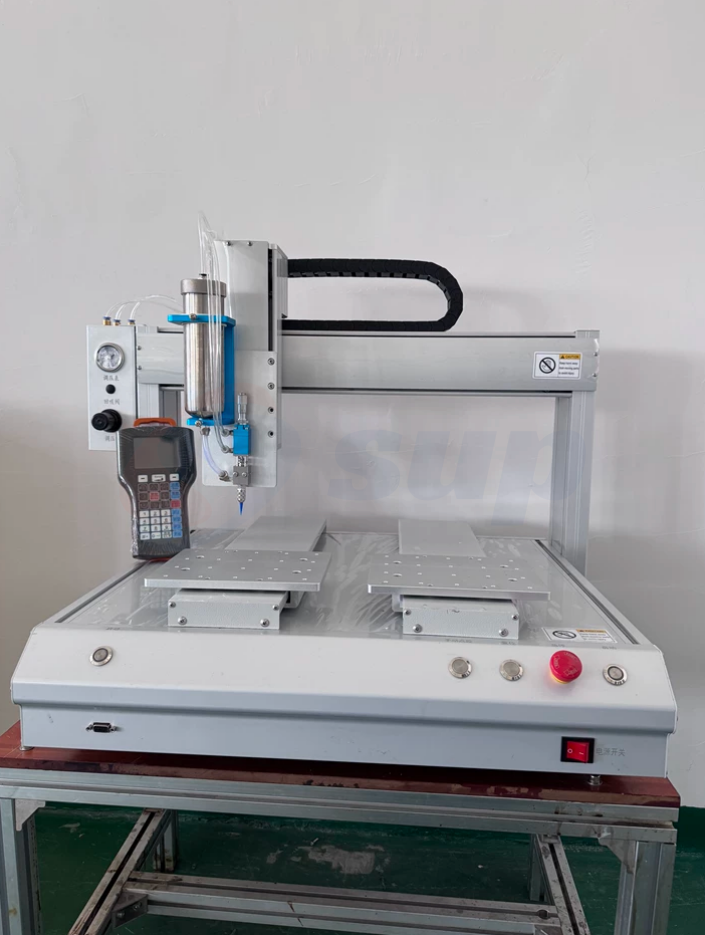

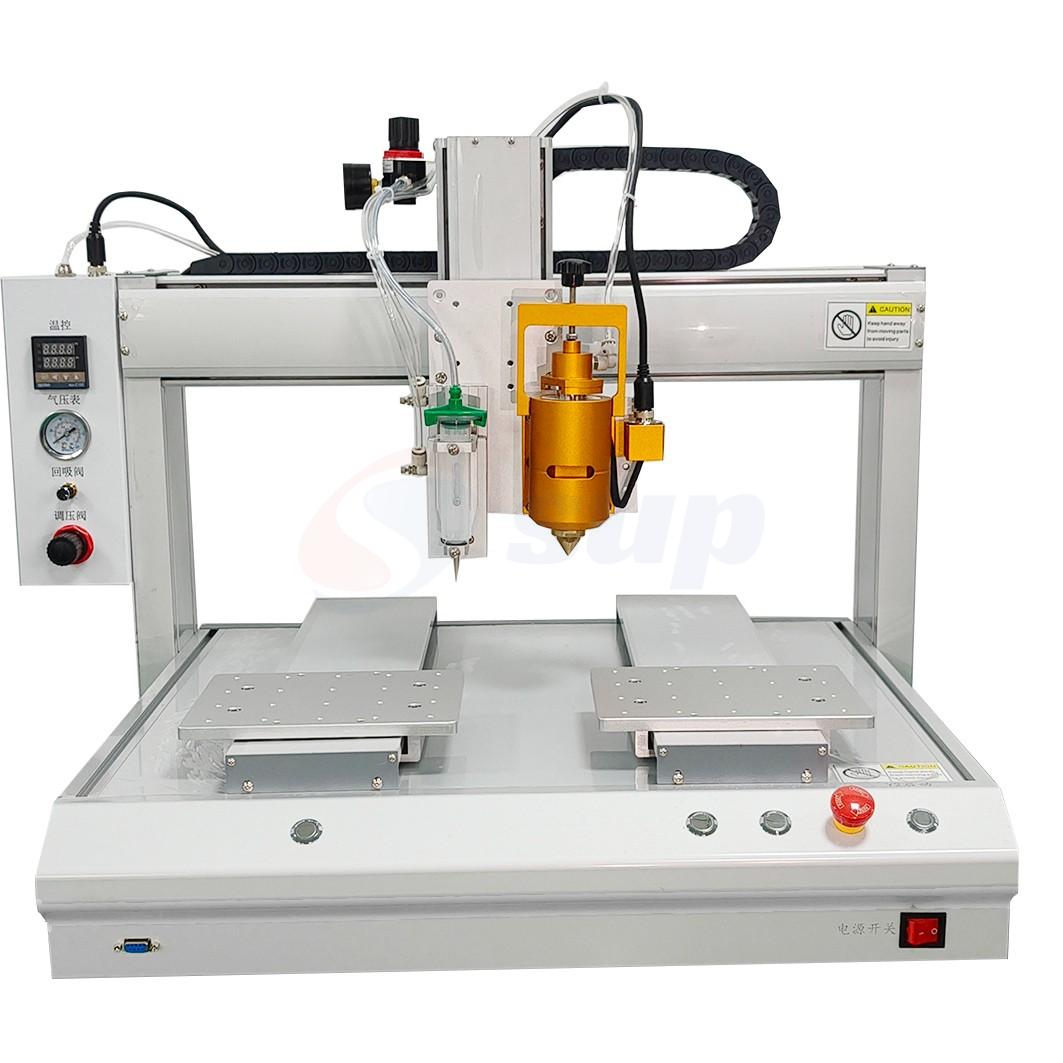

Automatic Epoxy Dispenser

1. The handheld box adopts a 320*240 high-resolution color screen and a full Chinese operation interface, which is easy to learn and understand.

2. It has graphic elements such as dots, lines, polylines, three-dimensional arcs (spatial arcs), circles, ellipses, racetracks, rectangles, spiral lines, coating, automatic fillets, and irregular three-dimensional spline curves.

3. It supports the import of PLT format files, realizing the direct import of path data of files, eliminating tedious manual teaching, being convenient and accurate, and very convenient for gluing graphic LOGOs and texts in the advertising industry.

4. It has functions such as regional array copying, translation operation, batch editing, single-step operation, and I/O input and output.

5. The system has automatic execution function, automatic reset, output setting, and processing time timer function.

6. It has four different wire drawing process options, which can solve process problems such as wire drawing.

7. After the action parameters are edited, they can be downloaded to the controller through the serial port and run independently offline. The action parameters can also be saved to the SD card of the handheld box for easy calling.

8. The handheld box is equipped with a 128M SD card, which can store thousands of processing files. Each file can support 8000 instructions, which can be called up when used.

9. The hardware has 4 gun channel controls, 4 general outputs, 8 inputs, 12 high-speed pulse outputs, and the glue dispensing time accuracy of the control point is 1MS.

10. Each action instruction has independent glue opening delay, glue closing delay, gun retraction height, and independent **advance glue closing** function. The flexible batch modification function can improve editing efficiency and also solve the problem of glue accumulation.
