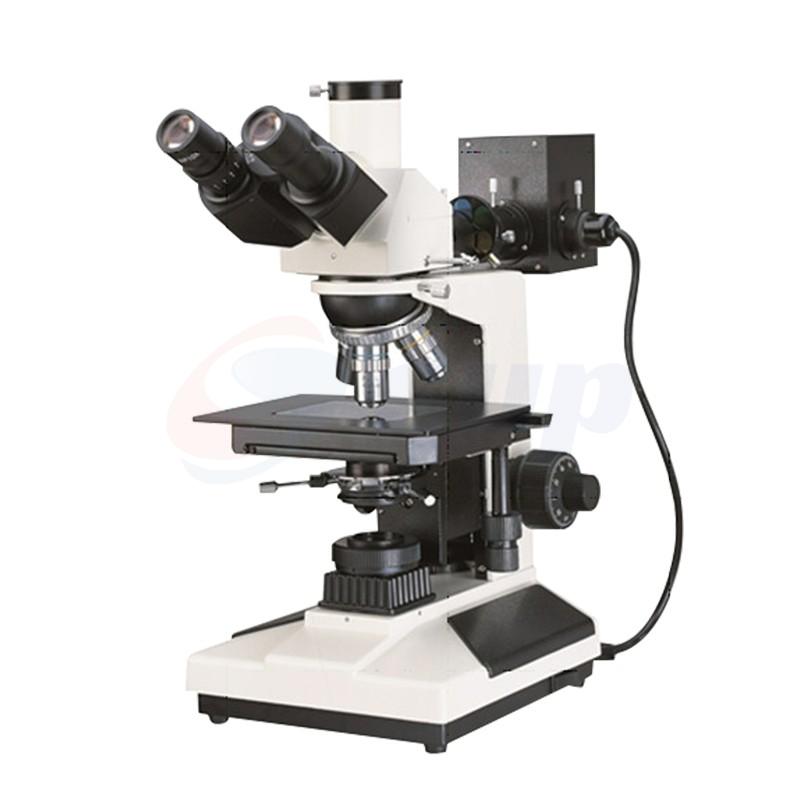

Weld Inspection Microscope for Lab

Product Features：

1. It is used to identify and analyze the composite structure of various metals and alloys.

2. Trinocular observation tube with adjustable monocular diopter, 30° inclined tube, and connectable to camera devices.

3. Dual-layer mechanical stage with dimensions of 185*140mm and a moving range of 75mm*50mm;

4. the moderate design concept makes it more convenient and comfortable for users to operate the stage.

5. 6V20W halogen lamp with adjustable brightness. Built-in field diaphragm, (yellow, green, blue, frosted glass) filter conversion device, and push-pull polarizer.

Component	Specification
Optical System	Finite Far Chromatic Aberration Correction Optical System
Observation Tube	Trinocular, inclined at 30° (built-in analyzer, switchable)
Eyepiece	Wide Field WF10X (Φ18mm)
Long Working Distance Plan Achromatic Objective	PL L5X/0.12 WD15.5 mm
	PL L10X/0.25 WD8.80mm
	PL L40X/0.6 WD3.73 mm
	PL L60X/0.75 WD1.34 mm
Revolver	Four-hole (inward ball internal positioning)
Focusing Mechanism	Coaxial coarse and fine focusing, fine adjustment graduation: 2μm, coarse adjustment tightness adjustable, with locking and limiting devices
Stage	Double-layer mechanical movable (Size: 185mmX140mm, Moving Range: 75mmX50mm)
Epi-Illumination System	6V 20W halogen lamp, adjustable brightness; Epi-illuminator with field diaphragm, aperture diaphragm, and polarizer.
Transmitted Illumination System	Abbe condenser NA.1.25, liftable up and down Blue filter and ground glass Condenser, 6V 20W halogen lamp, adjustable brightness
Metallographic Analysis System	Genuine FMIA2023 metallographic analysis software, Sony 5-megapixel camera device, 0.65X adapter interface, high-precision micrometer
