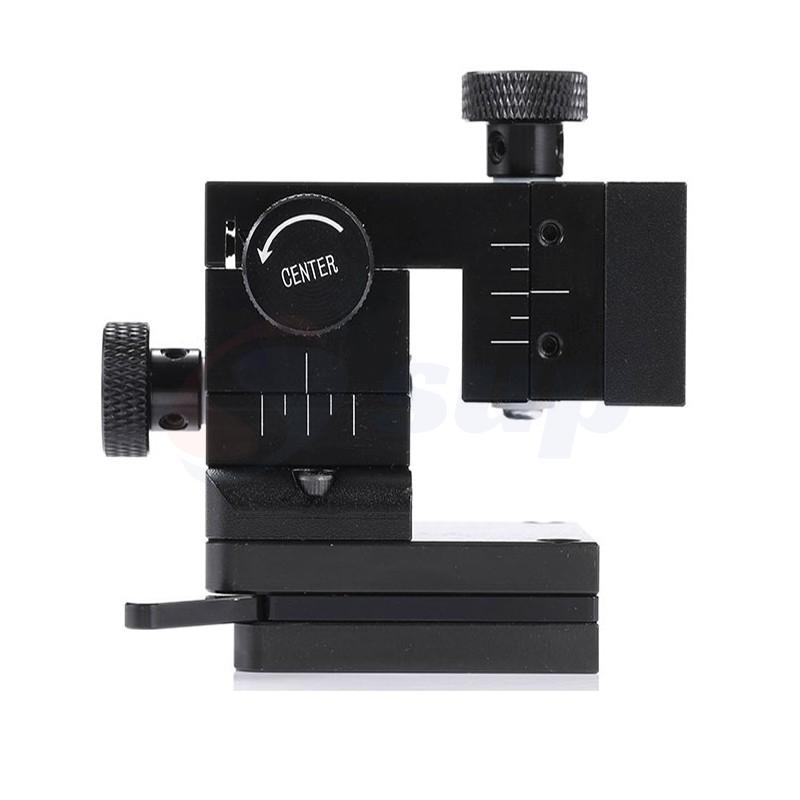

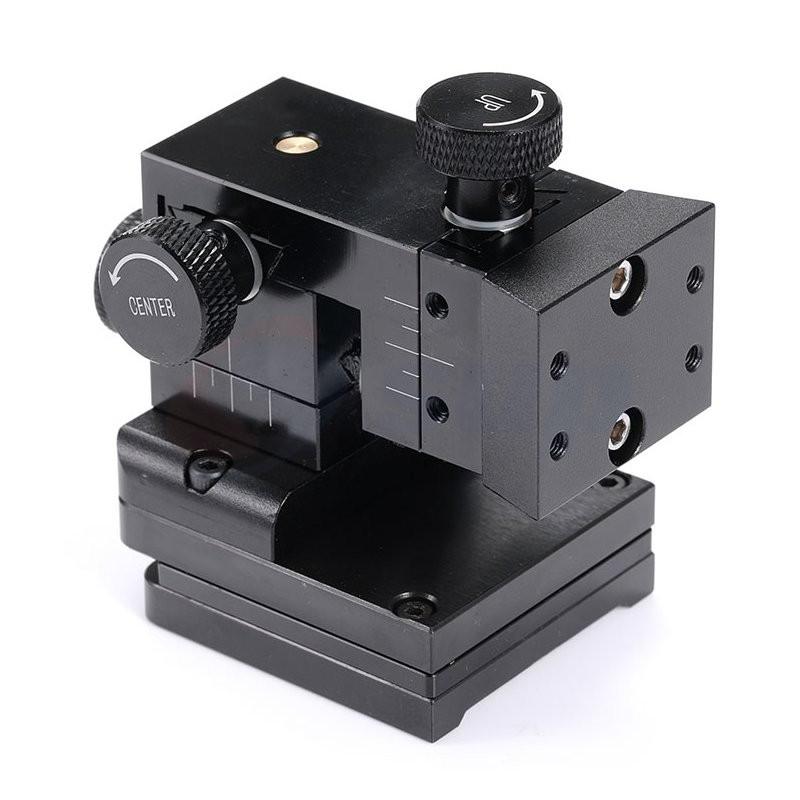

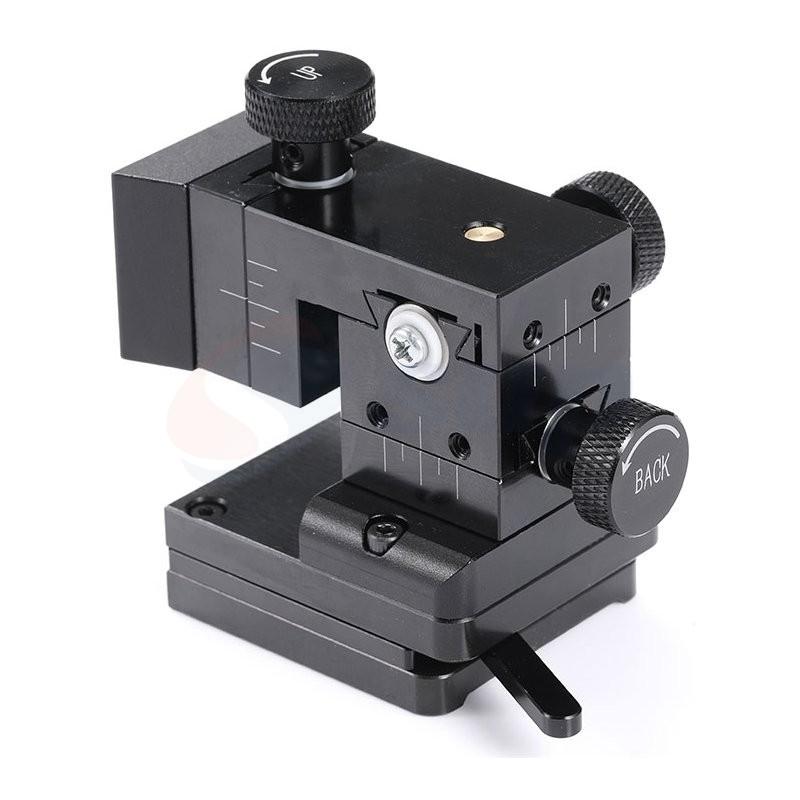

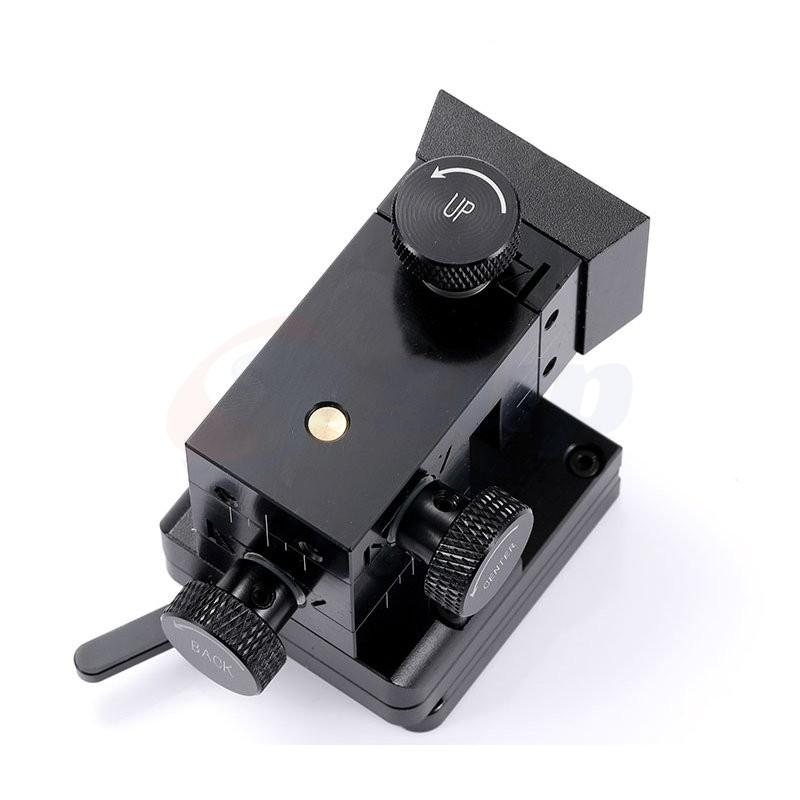

Probe Station - XYZ Axis Manual Displacement Platform (3-Axis)
Adjustable Axes:X-axis + Y-axis + Z-axis
Adjustment Stroke:X 12mm/ Y 12mm / Z 13mm
Adjustment Method:Precision Lead Screw
Guide Rail Structure:V - type Guide Rail
Screw Precision:0.5mm per revolution
Working Precision:5um
Installation Position - Horizontal:25mm
Installation Position - Vertical:10mm
Overall Dimensions:L 75mm * W 88mm * H 108mm
Fixing Method:Strong Magnetic Base
Net Weight:0.34kg
Product Features
- The adjustment precision of the differential head is 0.5mm per revolution, with a controllable precision of 5μm.
- Precision guide rail combination with an adjustable function, ensuring the Probe Station has no backlash and no recoil force (adjusted to the recommended state before leaving the factory).
- Equipped with a self-developed magnetic suction base to ensure sufficient adsorption force, keeping the Probe Station stable during use.
- Lightweight and flexible, suitable for most Probe Stations, saving working space.
Product Specifications
Probe Station L (Left) - 1 on the left
Probe Station R (Right) - 1 on the right
Probe Station L + R (Left + Right) - 2 pieces

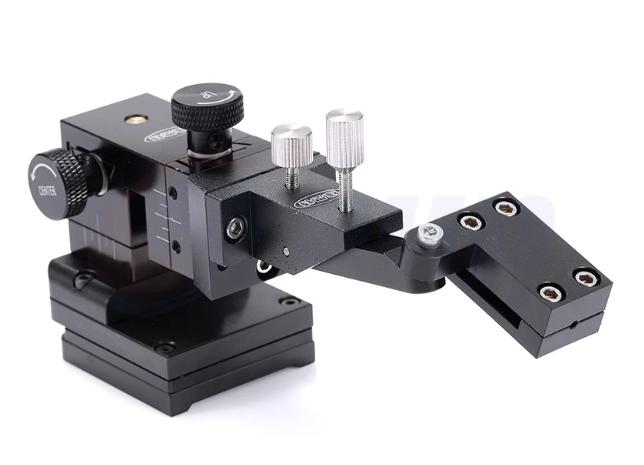

Probe Station + Gripper L (Left)
Probe Station + Gripper R (Right)
Probe Station + Gripper L + R (Left + Right)

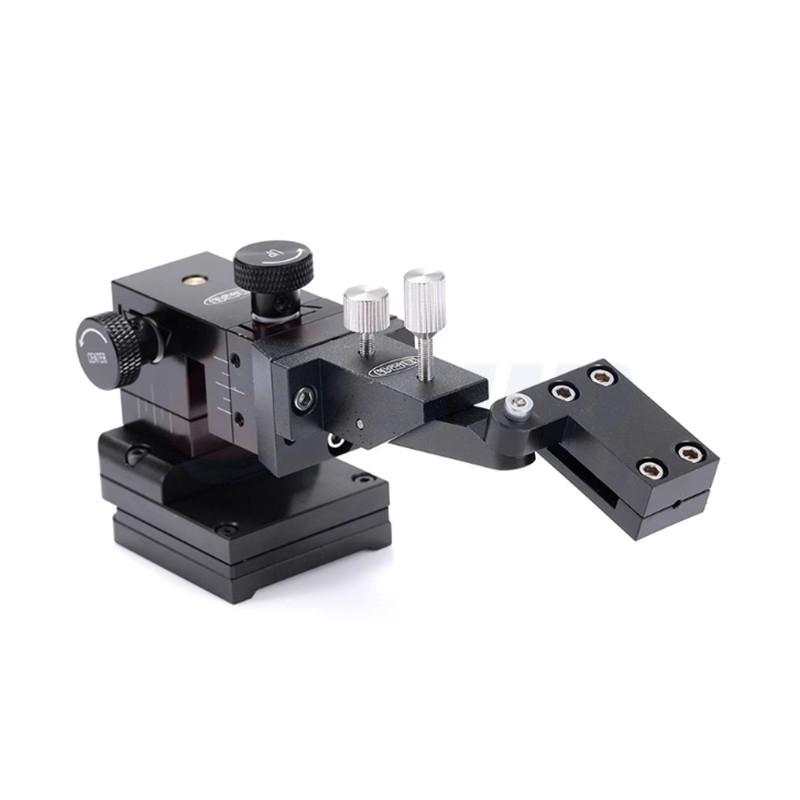

Three - Axis Probe Gripper
Product Parameters
Parameter | ||
Adjustable Axes | X-axis + Y-axis + Z-axis | |
Adjustment Stroke | X 12mm/ Y 12mm / Z 13mm | |
Adjustment Method | Precision Lead Screw | |
Guide Rail Structure | V - type Guide Rail | |
Screw Precision | 0.5mm per revolution | |
Working Precision | 5um | |
Installation Position | Installation Position - Horizontal | 25mm |
Installation Position - Vertical | 10mm | |

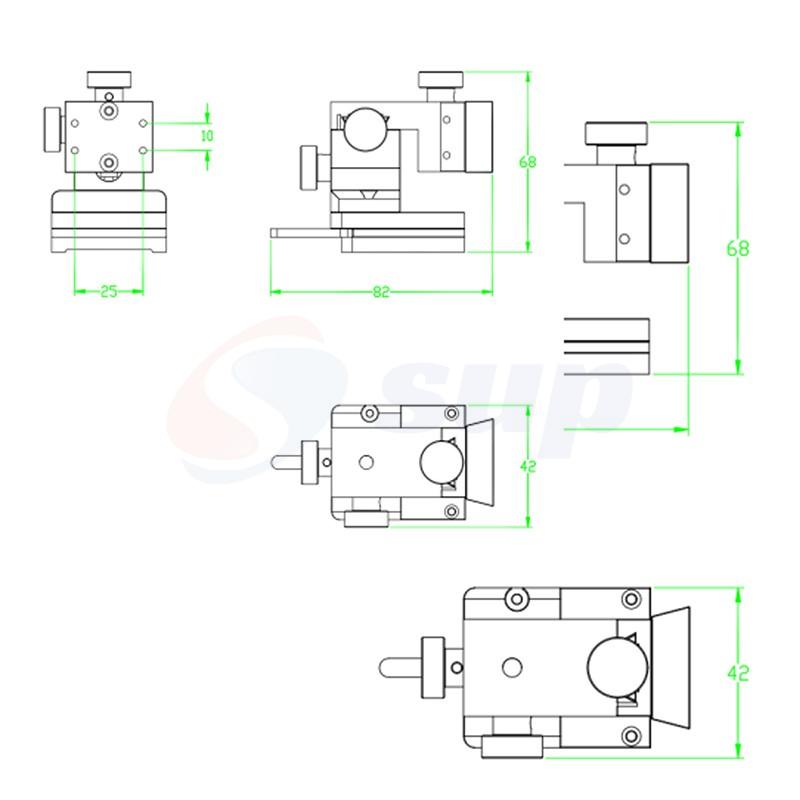

Overall Dimensions | L 75mm * W 88mm * H 108mm | |
Fixing Method | Strong Magnetic Base | |
Net Weight | 0.34kg | |
Note: The gripper can be customized according to the drawings. |
