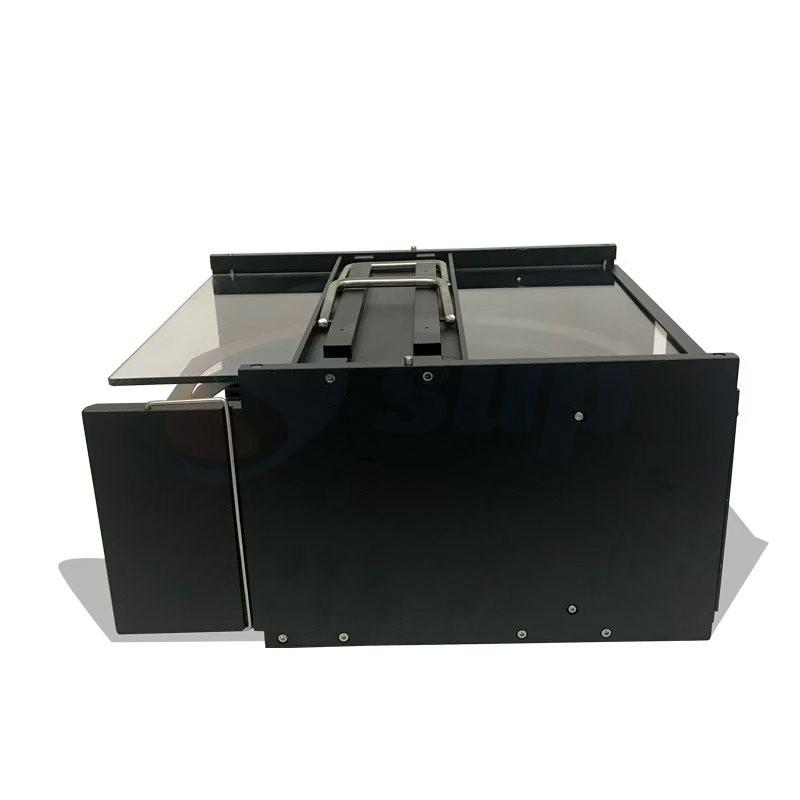

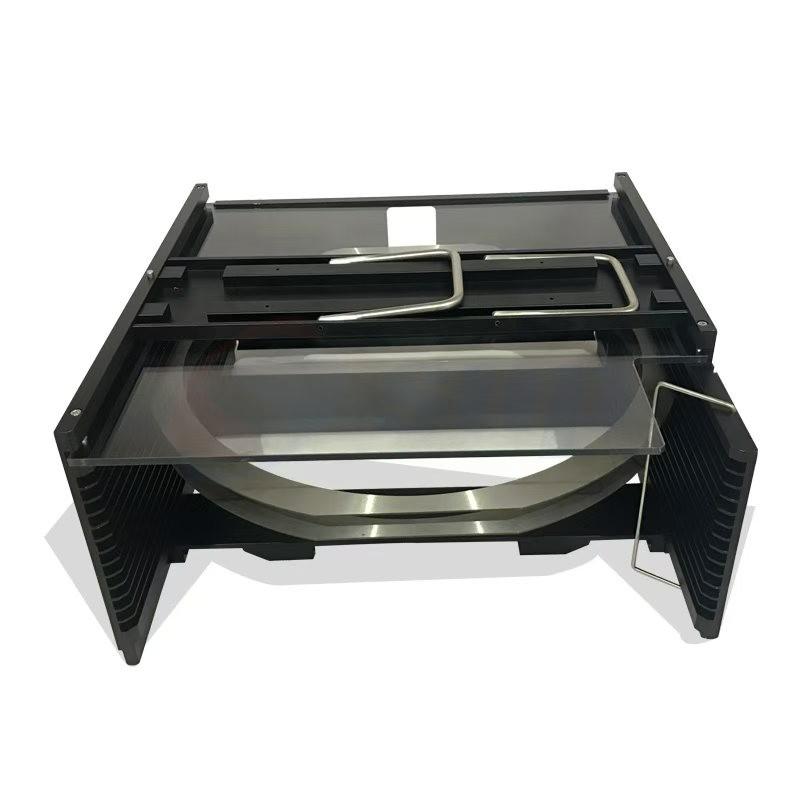

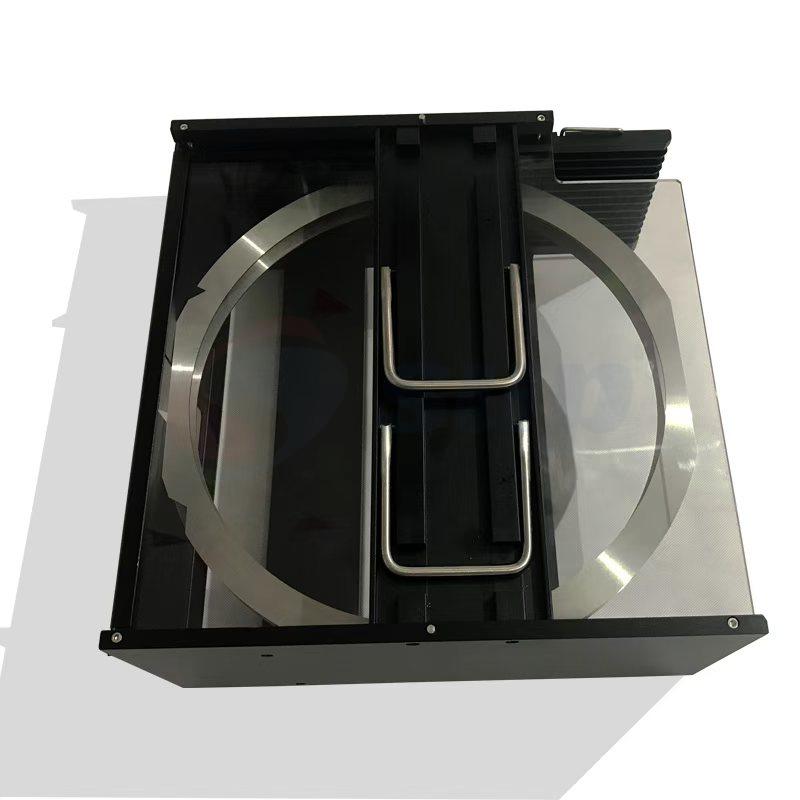

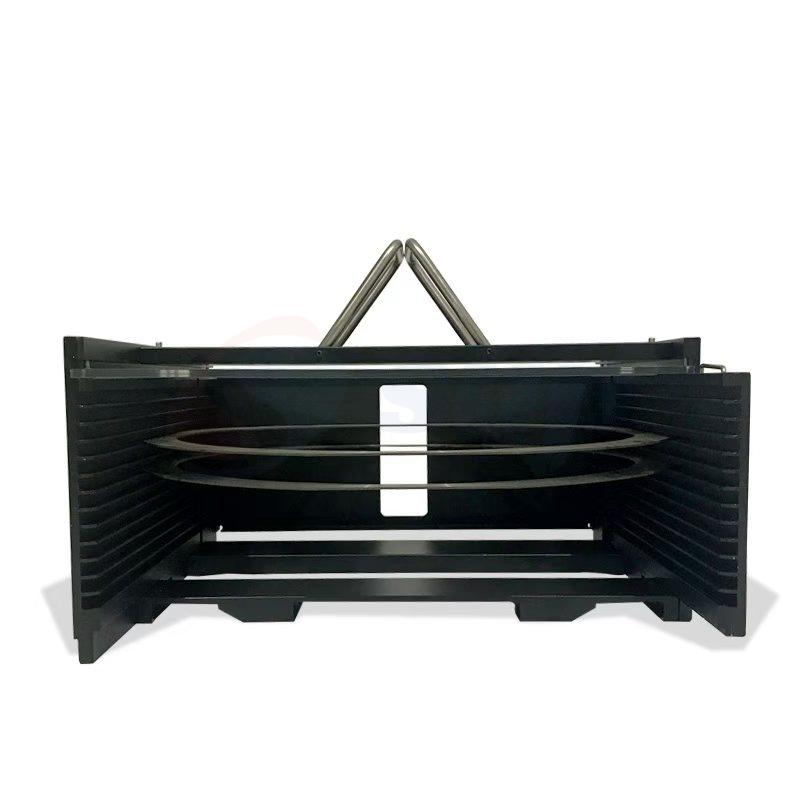

Aluminum Alloy 12 inches 300mm Wafer Cassette 13 Slots

Aluminum Alloy 12 inches 300mm Wafer Cassette (Customization is available according to customer requirements):

Product Number: DSF20A12-000-R0

Material: 6061 Aluminum

Size: 12 inches (300mm)

Number of Slots: 13 Slots

Dimensions: 389 x 391.4 x 187 mm

Weight: 4.5 kg

Verticality/Flatness: ≤ 0.5 mm

Anodizing Process: Anodized Surface Treatment

This 12-inch wafer box is made from high-quality 6061 aluminum profile, cut, CNC precision machined, and subjected to deburring and polishing, followed by anodized surface treatment. It is then assembled and laser-certified. The product has high verticality and flatness, and the surfaces of the slots are smooth without burrs, providing better protection for the wafers during cutting, dicing, and transportation, there by reducing the risk of damage.
